◀BACK

▶LM-ROLLER LRB, LRB-Z형

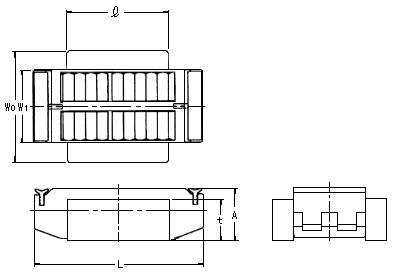

LRB형 촌법도 LRB-Z형 촌법도

LRB형

LRB-Z형

호칭형번	주요치수							질량 g	기본동 정격하중 C kN	기본정 정격하중 C₀ kN
호칭형번	W₁ 0 -0.1	길이 L	폭 W₀	두께 A	t	0 -0.2	S	질량 g	기본동 정격하중 C kN	기본정 정격하중 C₀ kN
LRB 1547 Z	15	47	22.2	17	13	20	0.2	60	15.2	17.6
LRB 2055 Z	20	55	30	18	14	30	0.2	117	26	37.8
LRB 2565 Z	25	65	38.1	21	16	35	0.1	205	40.4	61.1
LRB 3275 Z	32	75	45	22	17	45	0.1	340	52.5	91
LRB 4095	40	95	55	31	24	55	0.3	800	84.5	140
LRB 50130	50	130	76.2	43	33	78	0.3	1970	149	255
